ADSS Cable

ADSS

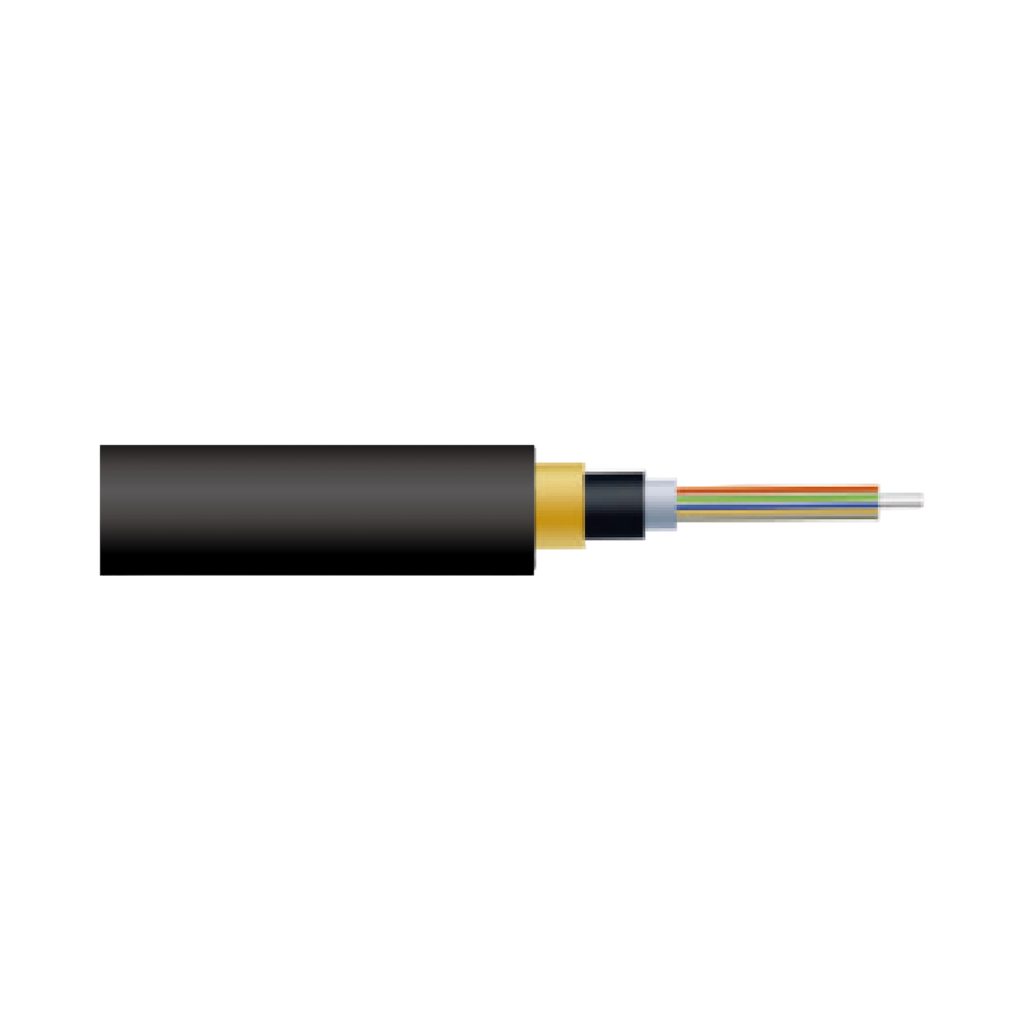

The ADSS Cable employs a loose-tube stranded structure, where optical fibers are inserted into loose tubes made of high-modulus material, and the tubes are filled with a waterproof compound. The loose tubes (and filler ropes) are stranded around a non-metallic central reinforcing core (FRP) to form a compact cable core. The cable core is protected against water using water-blocking yarn and tape. A polyethylene (PE) inner sheath is extruded over the cable core, followed by stranding of reinforcing aramid yarn, and finally, an outer polyethylene (PE) sheath or an anti-tracking (AT) outer sheath is extruded.

Specification

ADSS-12-48F ADSS-96F ADSS-144F

Tips

Successfully added to Inquiry List!

Features

Lightweight and small diameter, reducing the impact of icing and wind, and the load on towers and supports.

AT sheath provides superior anti-tracking performance.

Large span, with a maximum span exceeding 1000 meters.

Can be installed without power interruption.

Excellent tensile strength and temperature characteristics.

Good water-blocking material prevents longitudinal water seepage.

Suitable for short, medium, and long-distance self-supporting aerial transmission, railway, power, and communication pole line transmission, and transmission in environments with strong electromagnetic interference.

Specifications

Fiber Count Outer Diameter
(mm)
Nominal Weight
(kg/km)
Allowable Tensile Load (N)
IEC 60794-1-21-E1
Crush Resistance (N/100MM)
IEC 60794-1-21-E3
Min. Bend Radius
(mm)
Long-term Short-term Long-term Short-term Dynamic Static
12-48F 12.0±0.5 140.0 1200 3600 1100 2200 20D 10D
96F 14.0±0.5 165.0 1200 3600 1100 2200 20D 10D
144F 16.0±0.5 205.0 1200 3600 1100 2200 20D 10D
Operating Temperature Range (℃): -40~+70
Product continuous optimization statement: our company reserves the right to improve product design, specifications and functions at any time without prior notice. Please refer to the actually delivered products or the latest official release for reference.
