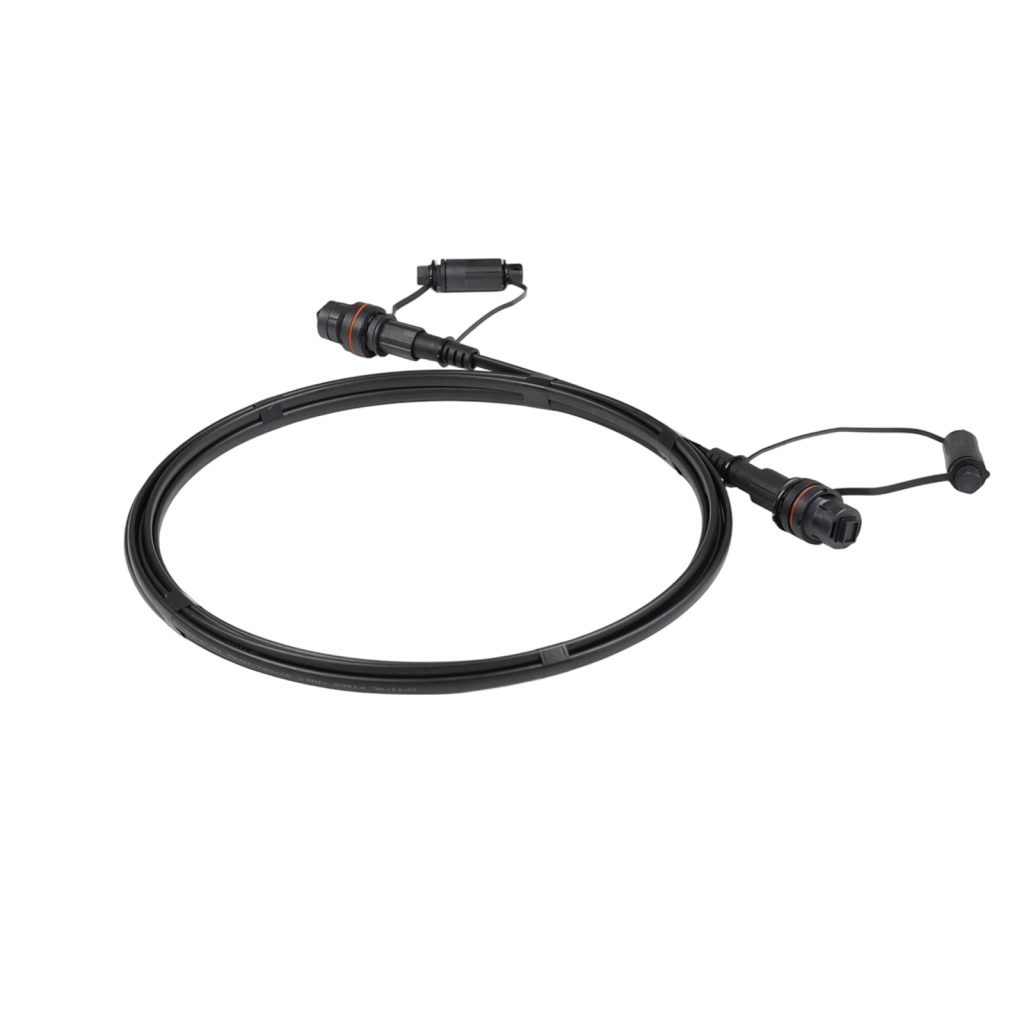

CP-AE
The CP-AE KN connector is a critical product of outdoor pre-connected solutions. It enhances the stability and reliability of optical link and reduces the implementation time and cost, providing a better solution for FTTH.
Specification
Compatible with Opti-Tap interfaces
Ultraviolet radiation resistance for high strength material with excellent environmental adaptability
Excellent sealing performance, waterproof, dustproof, meeting the ingress protection grade of IP68
Available in outdoor applications, with multiple installation options, supporting aerial and underground scenarios
| Fiber type | G657A2 | |||
| Cable type | 5.0mm round cable | 3.0mm round cable | 2*5mm figure-8 cable | 4*8.5mm flat cable |
| Tensile strength | 1200N (2mins) 400N (10mins) |
800N (1min) 200N (10mins) |
600N (1min) 200N (10mins) |
600N (1min) 200N (10mins) |
| Insertion loss | Max. 0.4dB (1310&1550nm) Avg. 0.2dB (1310&1550nm) |
|||
| Return loss | ≥65dB | |||
