GYFJH/V

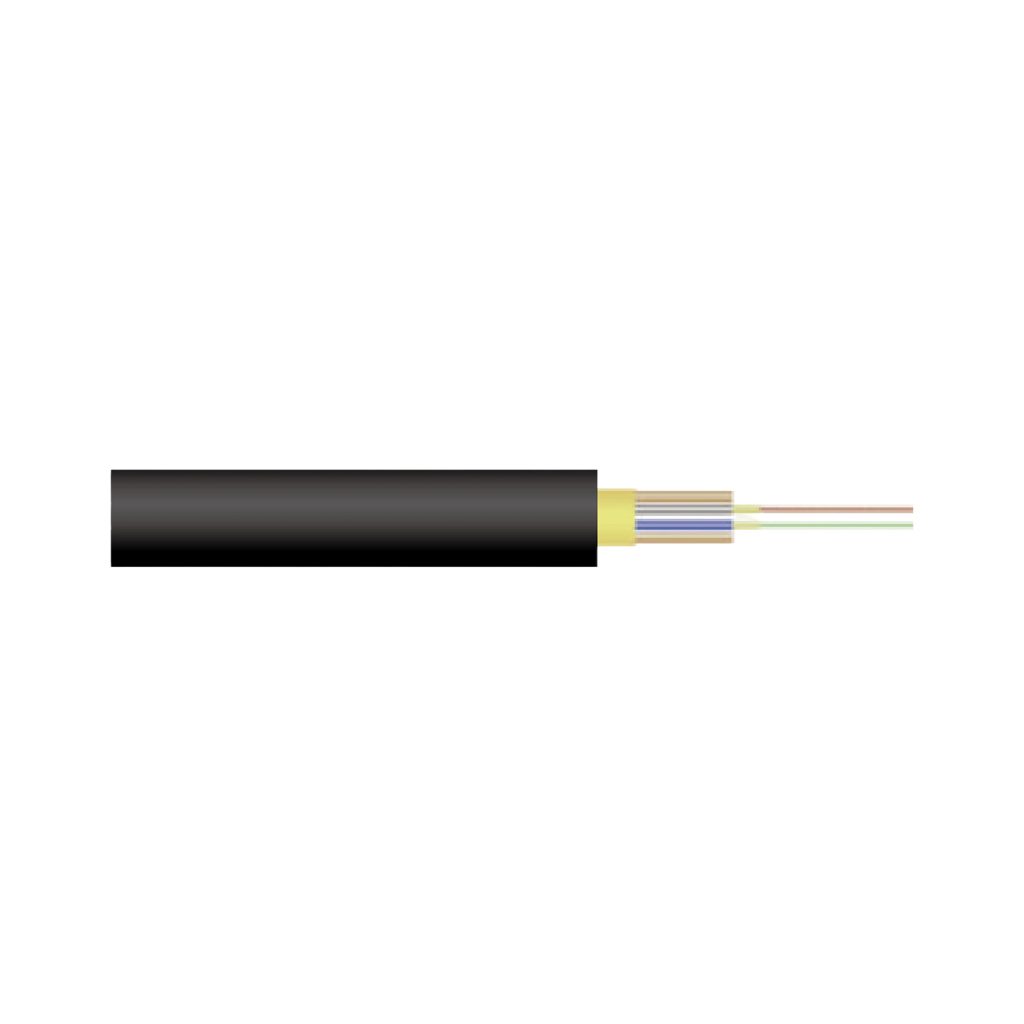

RRU Cable consists of 2 single-core cables as sub-units. These single-core sub-cables are twisted together with optional filler ropes, then extruded with an outer jacket of PVC (Polyvinyl Chloride) or LSZH (Low Smoke Zero Halogen).
Specification
Reliable mechanical and environmental resistance properties
All-dielectric structure, free from electromagnetic induction interference
Additional single steel wire strength member delivers excellent tensile performance
Eco-friendly LSZH flame-retardant jacket
Flexible, easy to splice, and supports high-capacity data transmission
Designed for vertical and horizontal wiring of wireless base stations
| Fiber Count | Outer Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) IEC 60794-1-21-E1 |
Crush Resistance (N/100MM) IEC 60794-1-21-E3 |
Min. Bend Radius (mm) |
|||
| Long-term | Short-term | Long-term | Short-term | Dynamic | Static | |||
| 2F | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D |
| Operating Temperature Range (℃): -20~+60 | ||||||||
