GJYX(F)CH

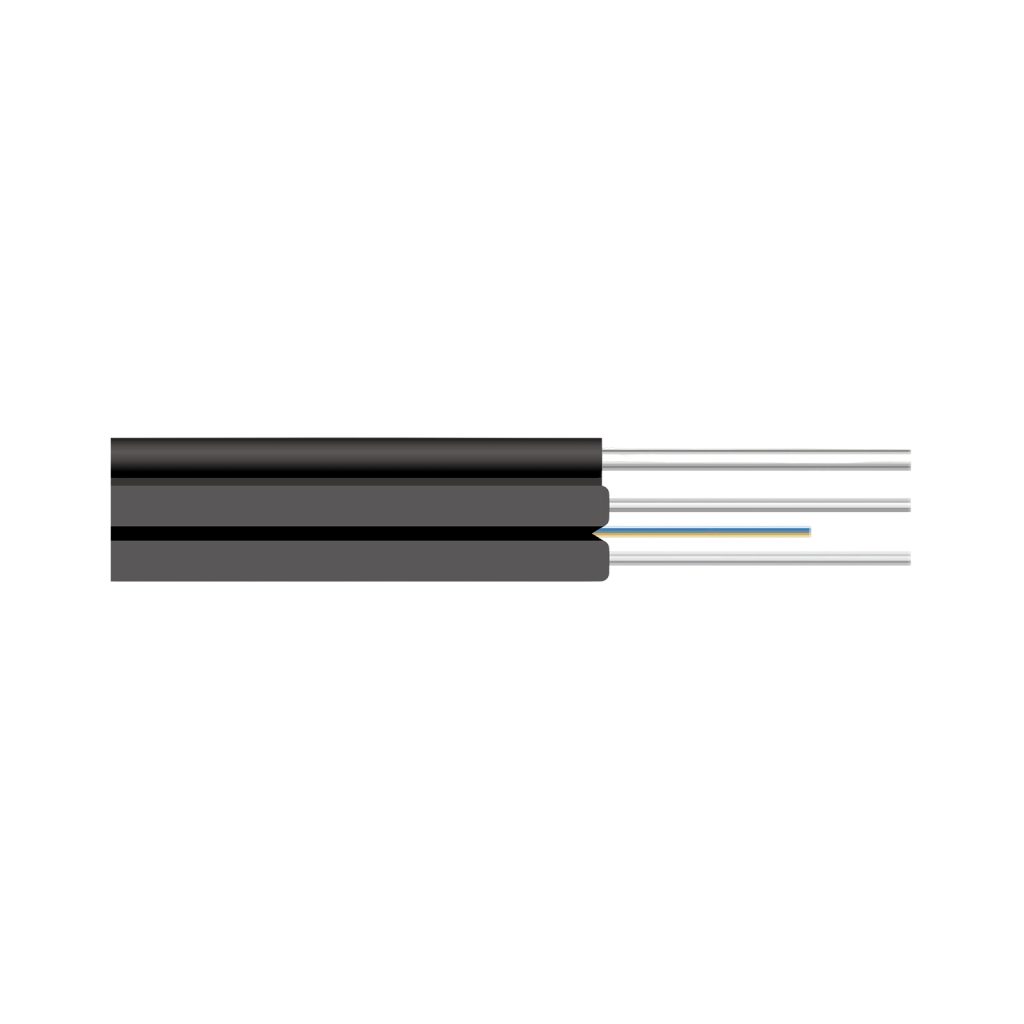

Self-Supporting Butterfly Drop Cable has an optical communication unit at its center, with two parallel metallic or non-metallic strength members arranged on both sides, and is finally extruded with black or colored LSZH jacket to form the finished cable.
Specification
Special bend-insensitive fiber delivers wider bandwidth and improves network transmission performance
Two parallel strength members deliver excellent crush resistance to protect optical fibers
Extra single steel wire strength member endows the cable with superior tensile resistance
Simple structure, light weight and high practicality
Unique grooved design allows easy stripping, convenient splicing, simpler installation and maintenance
Eco-friendly LSZH flame-retardant outer jacket
Suitable as building drop cable in structured cabling, especially for indoor and outdoor aerial drop wiring
| Fiber Count | Outer Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) IEC 60794-1-21-E1 |
Crush Resistance (N/100MM) IEC 60794-1-21-E3 |
Min. Bend Radius (mm) |
|||
| Long-term | Short-term | Long-term | Short-term | Dynamic | Static | |||
| 1F | (2.0±0.1)×(5.0±0.1) | 20.0 | 300 | 600 | 1000 | 2000 | 30D | 15D |
| 2F | (2.0±0.1)×(5.0±0.1) | 20.0 | 300 | 600 | 1000 | 2000 | 30D | 15D |
| 4F | (2.0±0.1)×(5.0±0.1) | 20.0 | 300 | 600 | 1000 | 2000 | 30D | 15D |
| Operating Temperature Range (℃): -20~+60 | ||||||||
