GJFJH/V

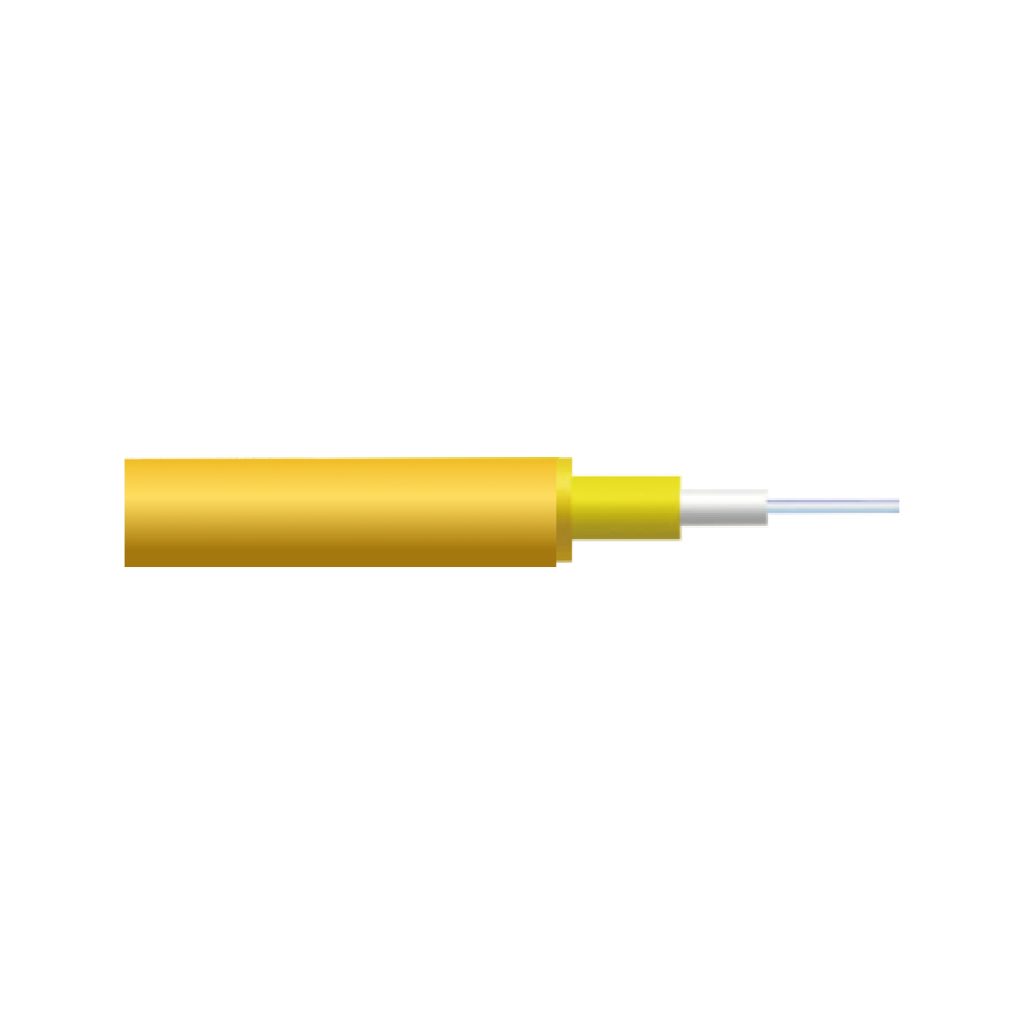

Single-Core Round Cable adopts a single φ900μm or φ600μm tight-buffered fiber as the optical transmission medium. It is reinforced with an outer aramid yarn strength member, and finally extruded with a PVC (Polyvinyl Chloride) or LSZH (Low Smoke Zero Halogen) outer jacket.
Specification
Aramid reinforcement delivers outstanding tensile resistance
The jacket meets relevant standards in mechanical and physical properties
Excellent flame retardancy with stable performance under high and low temperatures
Flexible, easy to splice, and supports high-capacity data transmission
Suitable for pigtails, patch cords, communication equipment rooms, interconnection of optical instruments and communication devices
| Fiber Count | Outer Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) IEC 60794-1-21-E1 |
Crush Resistance (N/100MM) IEC 60794-1-21-E3 |
Min. Bend Radius (mm) |
|||
| Long-term | Short-term | Long-term | Short-term | Dynamic | Static | |||
| 1F | 2.0±0.1 | 3.5 | 60 | 100 | 100 | 500 | 20D | 10D |
| 1F | 3.0±0.1 | 6.0 | 80 | 150 | 100 | 500 | 20D | 10D |
| Operating Temperature Range (℃): -20→+60 | ||||||||
