GYXTW

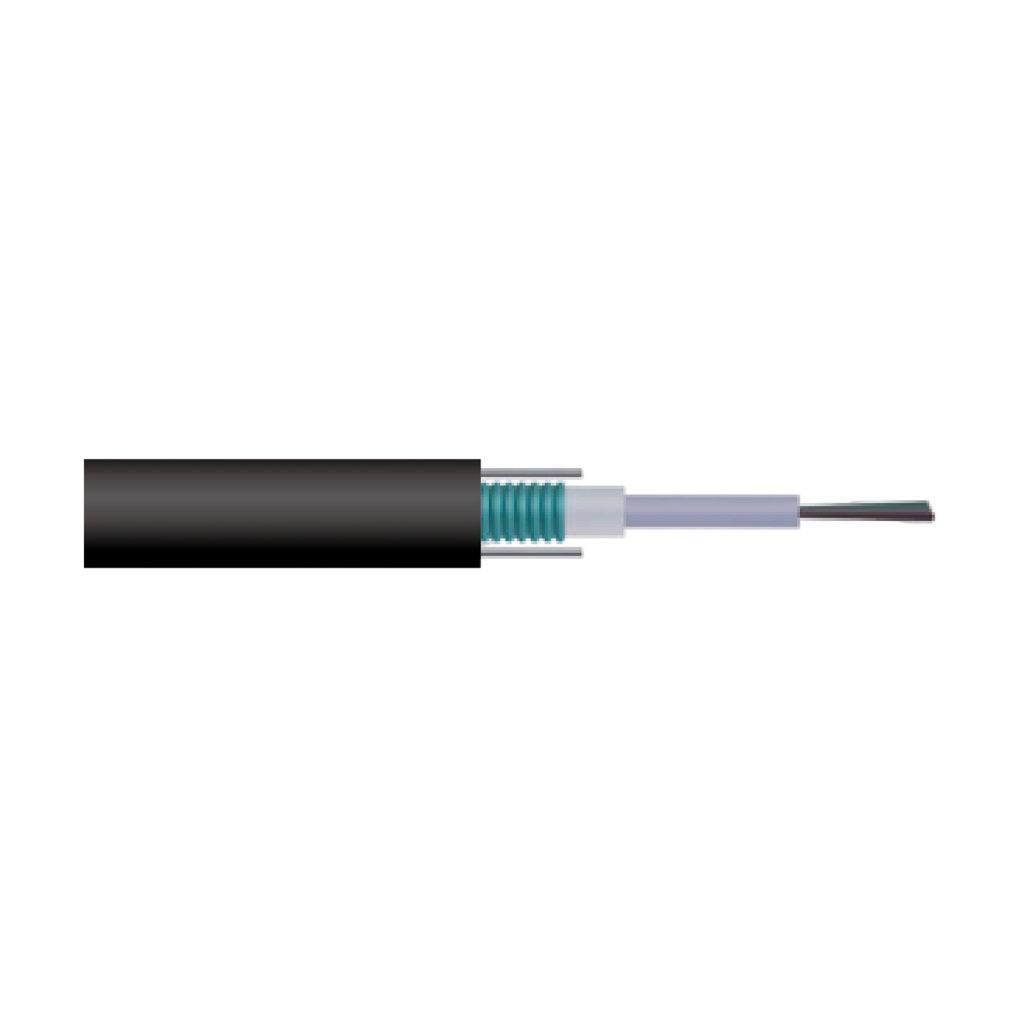

GYXTW Cable houses optical fibers inside high-modulus loose tubes filled with water-blocking compound. The loose tube is longitudinally wrapped with double-sided plastic-steel-plastic (PSP) tape, and water-blocking material is filled between tape and tube for compact structure and longitudinal water resistance. Two parallel steel wires are arranged on both sides, then a polyethylene jacket is extruded to complete the cable.
Specification
Superior mechanical performance and temperature stability
Special filling gel inside the tube provides vital protection for optical fibers
Loose tube material possesses excellent hydrolysis resistance and high structural strength
Good crush resistance and flexibility
PSP tape effectively boosts moisture penetration resistance
Two parallel steel wires guarantee reliable tensile strength
Suitable for aerial and duct installation, urban network and LAN communication
| Fiber Count | Outer Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) IEC 60794-1-21-E1 |
Crush Resistance (N/100MM) IEC 60794-1-21-E3 |
Min. Bend Radius (mm) |
|||
| Long-term | Short-term | Long-term | Short-term | Dynamic | Static | |||
| 2-12F | 7.6±0.3 | 61.0 | 600 | 1500 | 750 | 1500 | 20D | 10D |
| 14-24F | 8.2±0.3 | 70.0 | 600 | 1500 | 750 | 1500 | 20D | 10D |
| Operating Temperature Range (℃): -20~+60 | ||||||||
