GYXTC8S

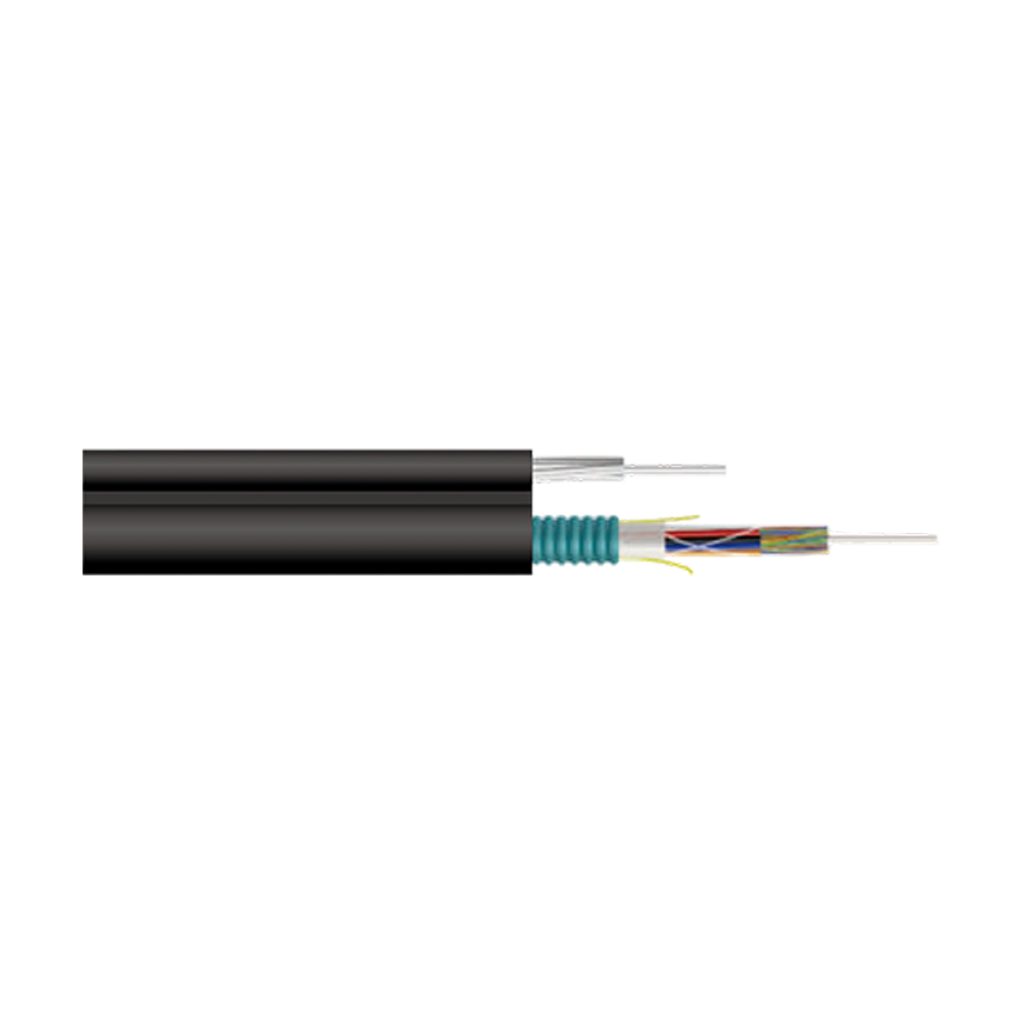

The GYTC8S Cable structure consists of optical fibers inserted into loose tubes made of high-modulus material. The loose tubes are filled with a waterproof compound. At the center of the cable core is a metal reinforcing core. The loose tubes (and filler ropes) are twisted around the central reinforcing core to form a compact and round cable core. After the cable core is longitudinally wrapped with a layer of plastic-coated steel tape, it is integrated with the steel wire strands into a figure-eight shaped polyethylene sheath.
Specification
Steel wire strands provide ultra-high tensile strength, supporting self-supporting aerial laying and cutting installation expenses
Excellent mechanical performance and temperature stability
Special filling gel inside loose tubes delivers crucial protection for optical fibers
Loose tube material owns outstanding hydrolysis resistance and high structural strength
PSP tape effectively upgrades moisture penetration resistance
Applicable to aerial installation and large-fiber-count long-distance communication networks
| Fiber Count | Outer Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) IEC 60794-1-21-E1 |
Crush Resistance (N/100MM) IEC 60794-1-21-E3 |
Min. Bend Radius (mm) |
|||
| Long-term | Short-term | Long-term | Short-term | Dynamic | Static | |||
| 2-30F | (9.1±0.3)×(16.1±0.5) | 144.0 | 2500 | 5000 | 750 | 1500 | 20D | 10D |
| 32-36F | (9.4±0.3)×(16.4±0.5) | 155.0 | 2500 | 5000 | 750 | 1500 | 20D | 10D |
| 38-60F | (9.8±0.3)×(16.8±0.5) | 162.0 | 2500 | 5000 | 750 | 1500 | 20D | 10D |
| 62-72F | (10.5±0.3)×(17.5±0.5) | 185.0 | 2500 | 5000 | 750 | 1500 | 20D | 10D |
| 74-96F | (11.9±0.3)×(18.9±0.5) | 211.0 | 2500 | 5000 | 750 | 1500 | 20D | 10D |
| 98-120F | (13.4±0.3)×(20.4±0.5) | 239.0 | 2500 | 5000 | 750 | 1500 | 20D | 10D |
| 122-144F | (14.5±0.3)×(22.1±0.5) | 289.0 | 2500 | 5000 | 750 | 1500 | 20D | 10D |
| Operating Temperature Range (℃): -40~+70 | ||||||||
