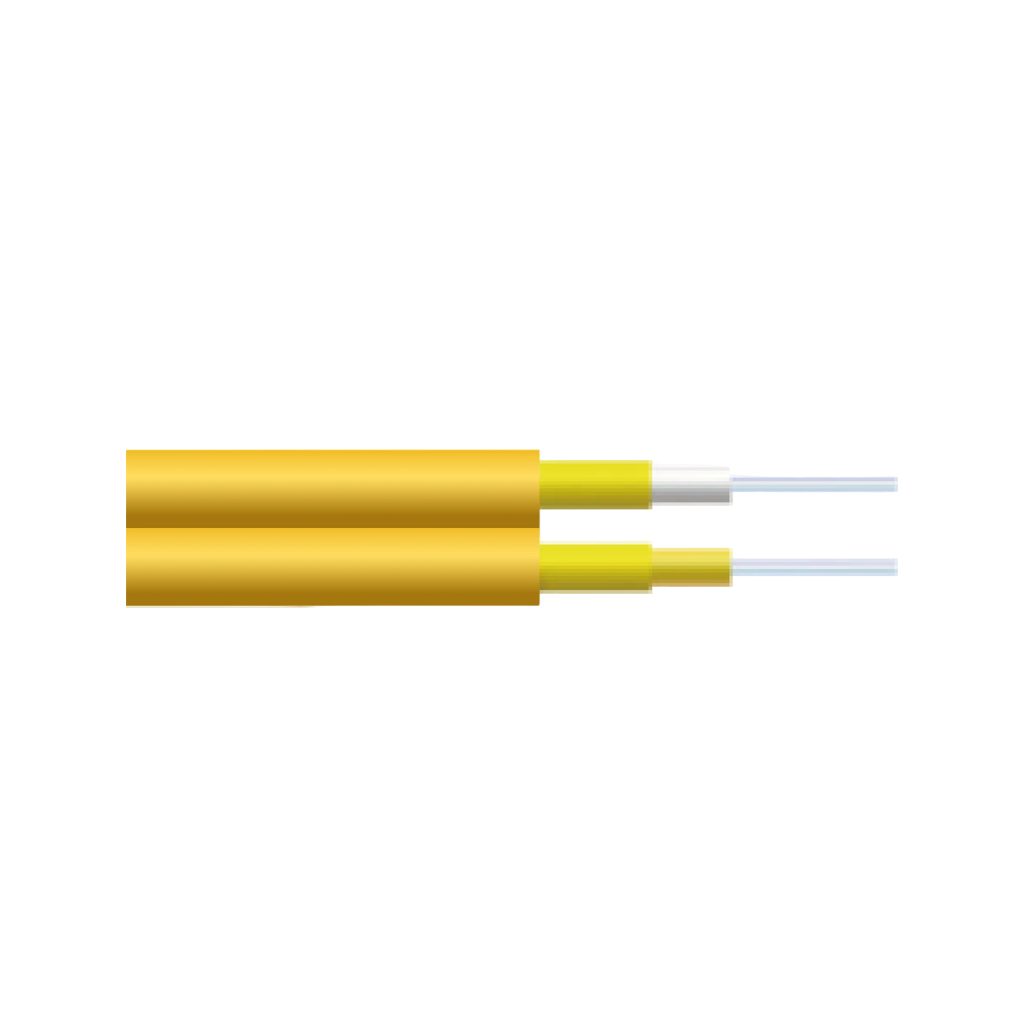

Duplex Figure-8 Cable GJFJH/V

Duplex Figure-8 Cable

GJFJH/V

GJFJH/V Duplex Figure-8 Cable uses φ900μm or φ600μm tight-buffered fiber as the optical transmission medium. An outer layer of aramid yarn serves as the strength member, and an outer figure-8 shaped jacket made of PVC (Polyvinyl Chloride) or LSZH (Low Smoke Zero Halogen) is extruded as the outermost layer.

Specification

GJFJH/V-1.6×3.3mm GJFJH/V-1.8×3.7mm GJFJH/V-2.0×4.1mm GJFJH/V-2.8×5.7mm GJFJH/V-3.0×6.1mm

Features

Tight-buffered fiber design enables easy stripping for installation

Tight-buffered fiber features reliable flame retardancy

Aramid reinforcement provides excellent tensile performance

Figure-8 jacket structure is easy to split and branch

Outer jacket material boasts corrosion resistance, waterproof, UV resistance, flame retardancy and eco-friendliness

Suitable for duplex fiber pigtails & patch cords, indoor riser and forced ventilation wiring, interconnection of optical instruments and communication equipment

Specifications

Fiber Count	Outer Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N) IEC 60794-1-21-E1		Crush Resistance (N/100MM) IEC 60794-1-21-E3		Min. Bend Radius (mm)
Fiber Count	Outer Diameter (mm)	Nominal Weight (kg/km)	Long-term	Short-term	Long-term	Short-term	Dynamic	Static
2F	1.6×3.3	4.4	60	120	200	1000	30D	15D
2F	1.8×3.7	6.0	60	120	200	1000	30D	15D
2F	2.0×4.1	7.2	90	150	200	1000	30D	15D
2F	2.8×5.7	13.0	120	225	200	1000	30D	15D
2F	3.0×6.1	14.8	120	225	200	1000	30D	15D
Operating Temperature Range (℃): -20~+60

Product continuous optimization statement: our company reserves the right to improve product design, specifications and functions at any time without prior notice. Please refer to the actually delivered products or the latest official release for reference.
