GJX(F)H

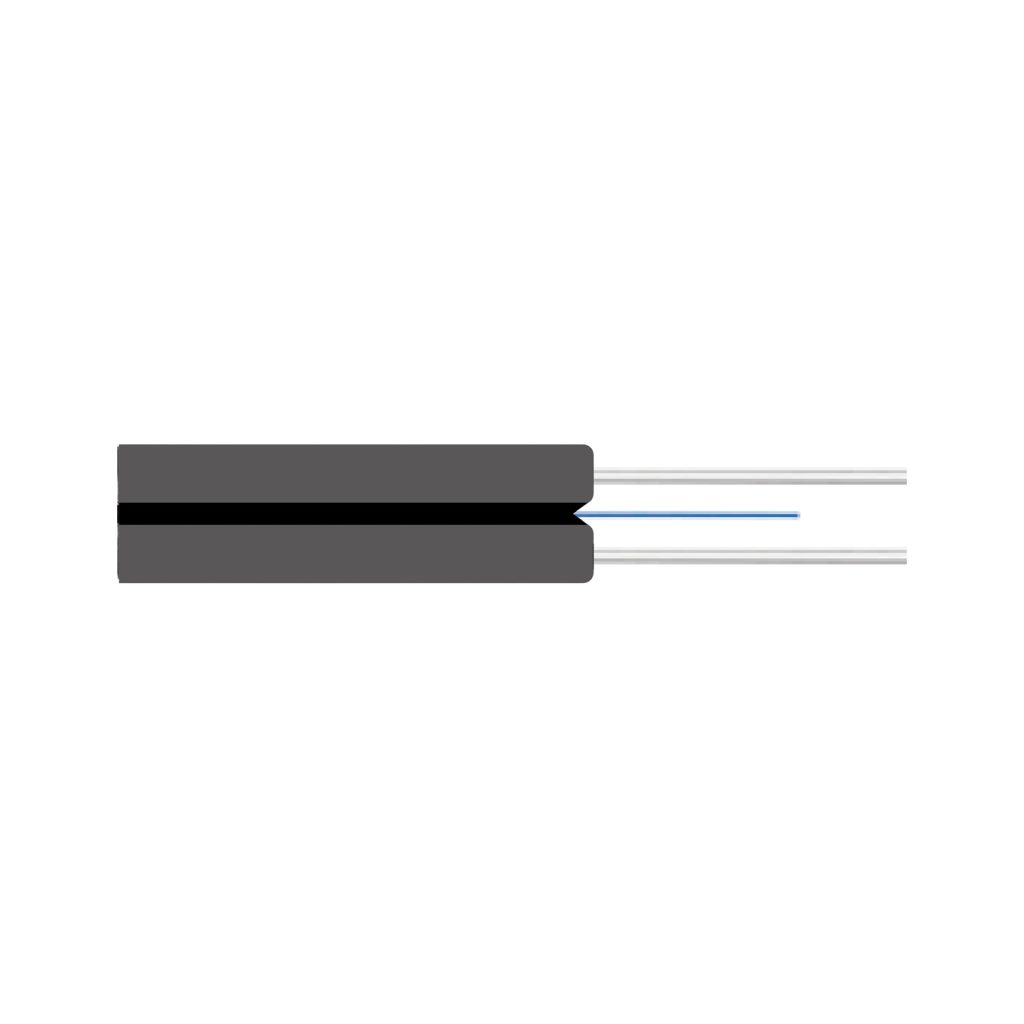

Butterfly Drop Indoor Cable features an optical communication unit at the center, with two parallel metallic or non-metallic strength members arranged on both sides, then extruded with black or colored LSZH outer jacket for cable forming.
Specification
Special bend-insensitive fiber delivers wider bandwidth and boosted network transmission performance
Two parallel strength members offer great crush resistance to protect internal fibers
Simple cable structure, lightweight and highly practical
Unique grooved design enables easy stripping, convenient splicing, and simplified installation & maintenance
Eco-friendly LSZH flame-retardant jacket
Suitable for building drop cable, indoor structured cabling and FTTH (Fiber to the Home) deployment
| Fiber Count | Outer Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) IEC 60794-1-21-E1 |
Crush Resistance (N/100MM) IEC 60794-1-21-E3 |
Min. Bend Radius (mm) |
|||
| Long-term | Short-term | Long-term | Short-term | Dynamic | Static | |||
| 1F | (2.0±0.1)×(3.0±0.1) | 8 | 40 | 80 | 500 | 1000 | 20D | 10D |
| 2F | (2.0±0.1)×(3.0±0.1) | 8 | 40 | 80 | 500 | 1000 | 20D | 10D |
| 4F | (2.0±0.1)×(3.0±0.1) | 10 | 40 | 80 | 500 | 1000 | 20D | 10D |
| Operating Temperature Range (℃): -20~+60 | ||||||||
