GYDXTW

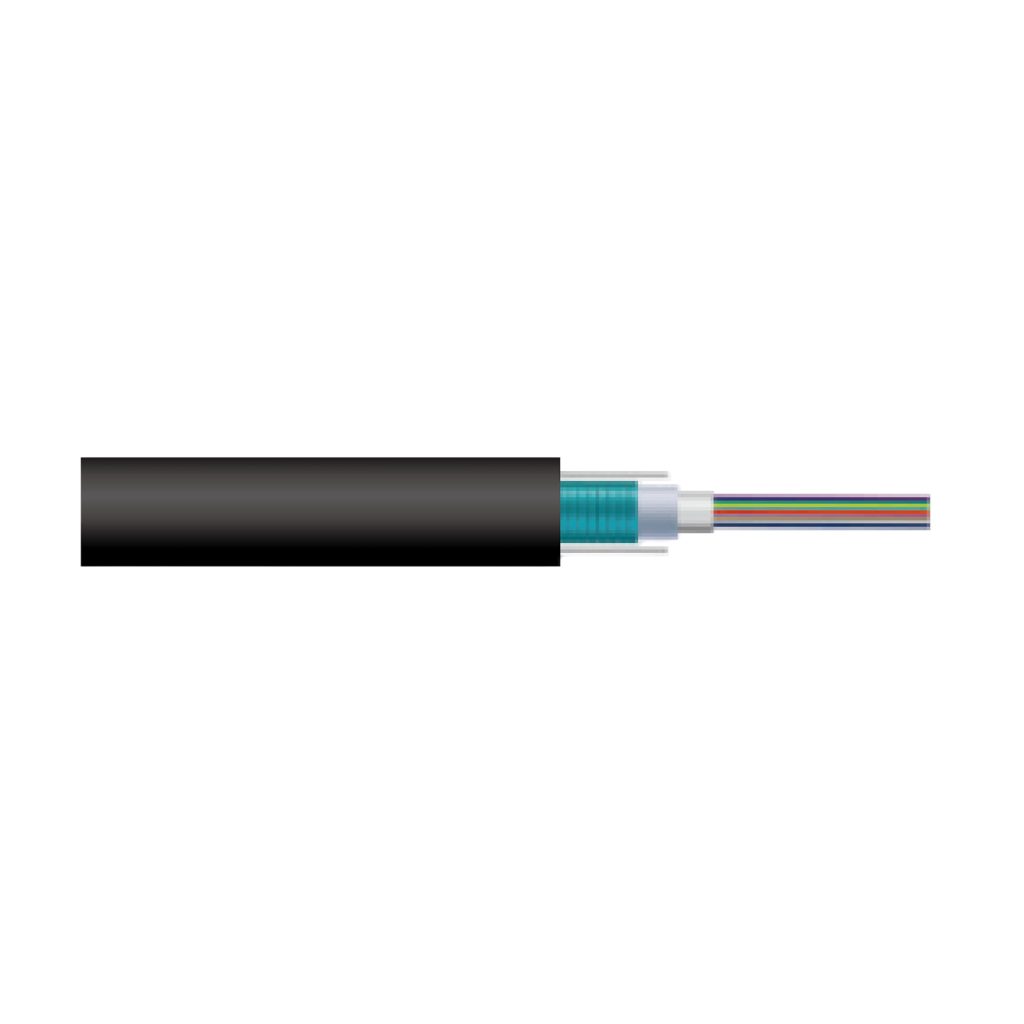

GYDXTW Cable loads fiber ribbons into loose tubes made of high-modulus material pre-filled with water-blocking compound. The loose tube is longitudinally wrapped with double-sided plastic-steel-plastic (PSP) tape; water-blocking filler between the tape and tube ensures compact construction and longitudinal water resistance. Two parallel steel wires are placed on two sides, then a polyethylene jacket is extruded to finish the cable.
Specification
Ribbon fiber design supports large fiber counts for high-capacity transmission
Excellent mechanical performance and temperature stability
Special filling gel inside tubes delivers critical protection for fiber ribbons
Loose tube material features outstanding hydrolysis resistance and high strength
Balanced crush resistance and flexibility
PSP tape greatly upgrades moisture penetration resistance
Two parallel steel wires secure reliable tensile strength
Applicable to aerial & duct laying, urban networks and LAN communication
| Fiber Count | Outer Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) IEC 60794-1-21-E1 |
Crush Resistance (N/100MM) IEC 60794-1-21-E3 |
Min. Bend Radius (mm) |
|||
| Long-term | Short-term | Long-term | Short-term | Dynamic | Static | |||
| 12-48F | 13.8±0.5 | 164.0 | 600 | 1500 | 750 | 1500 | 20D | 10D |
| 60-72F | 14.6±0.5 | 181.0 | 600 | 1500 | 750 | 1500 | 20D | 10D |
| 74-96F | 15.0±0.5 | 194.0 | 600 | 1500 | 750 | 1500 | 20D | 10D |
| 98-120F | 15.8±0.5 | 212.0 | 600 | 1500 | 750 | 1500 | 20D | 10D |
| 122-144F | 16.4±0.5 | 228.0 | 600 | 1500 | 750 | 1500 | 20D | 10D |
| Operating Temperature Range (℃): -40~+70 | ||||||||
