GYTY53

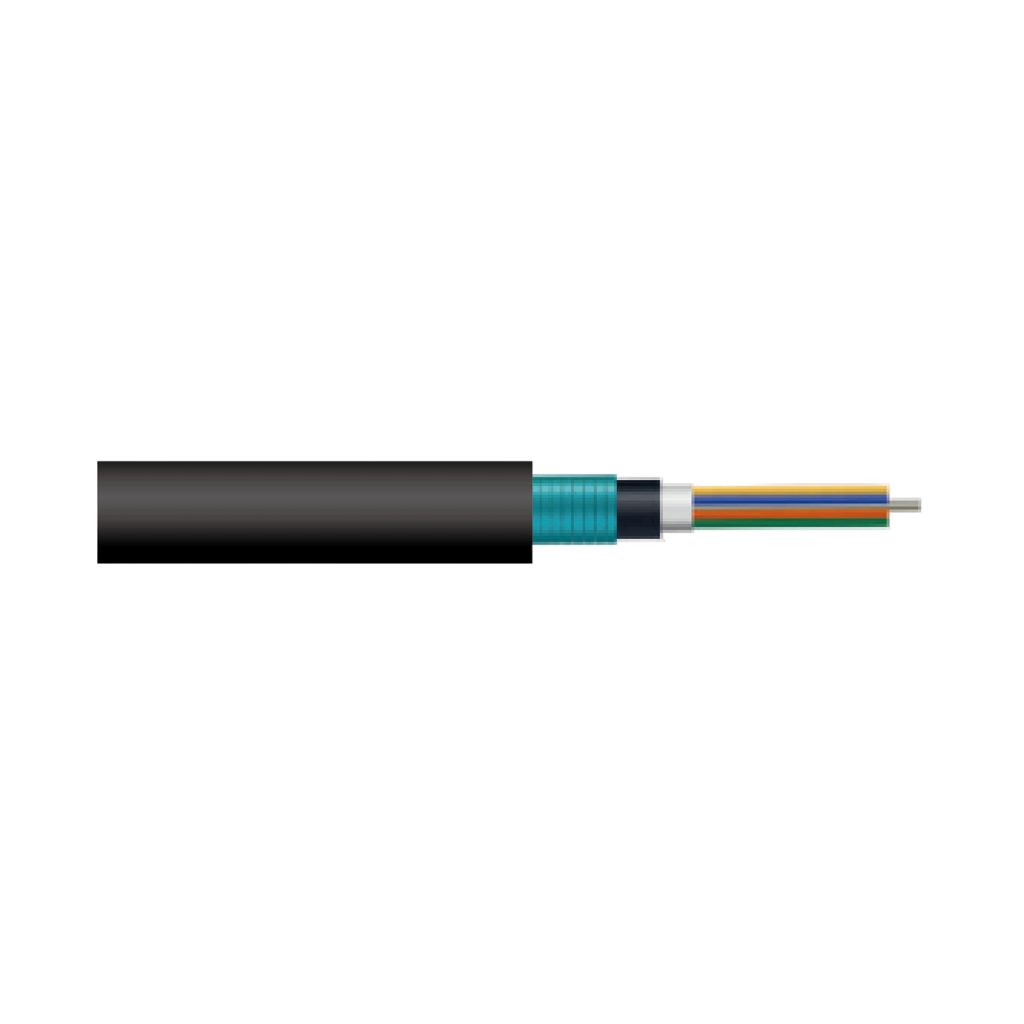

The GYTY53 Cable structure consists of optical fibers inserted into loose tubes made of high-modulus material. The loose tubes are filled with a waterproof compound. At the center of the cable core is a metal reinforcing core. For certain core counts, a layer of polyethylene (PE) is extruded over the metal reinforcing core. The loose tubes (and filler ropes) are twisted around the central reinforcing core to form a compact and round cable core. The gaps within the cable core are filled with a water-blocking filler. A polyethylene inner sheath is extruded over the cable core, and after being longitudinally wrapped with double-sided plastic-coated steel tape, a polyethylene outer sheath is extruded to form the cable.
Specification
The optical cable possesses excellent mechanical properties and temperature characteristics.
The tube is filled with a special grease, providing crucial protection for the optical fiber.
The loose tube material itself has good hydrolysis resistance and high strength.
The specially designed tight optical cable structure effectively prevents tube shrinkage.
Good compressive strength and flexibility; the PE sheath has excellent UV radiation resistance.
Suitable for overhead pipelines and direct burial installations, long-distance communications, and especially suitable for environments with high requirements for mechanical strength and rodent control.
| Fiber Count | Outer Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) IEC 60794-1-21-E1 |
Crush Resistance (N/100MM) IEC 60794-1-21-E3 |
Min. Bend Radius (mm) |
|||
| Long-term | Short-term | Long-term | Short-term | Dynamic | Static | |||
| 12-60F | 12.0±0.5 | 131.0 | 1000 | 3000 | 1100 | 2200 | 25D | 12.5D |
| 62-72F | 13.0±0.5 | 171.0 | 1000 | 3000 | 1100 | 2200 | 25D | 12.5D |
| 74-96F | 14.0±0.5 | 205.0 | 1000 | 3000 | 1100 | 2200 | 25D | 12.5D |
| 98-120F | 16.0±0.5 | 245.0 | 1000 | 3000 | 1100 | 2200 | 25D | 12.5D |
| 122-144F | 18.5±0.5 | 335.0 | 1000 | 3000 | 1100 | 2200 | 25D | 12.5D |
| Operating Temperature Range (℃): -40~+70 | ||||||||
