Multi-Core Cabling Cable GJPFJH/V

Multi-Core Cabling Cable

GJPFJH/V

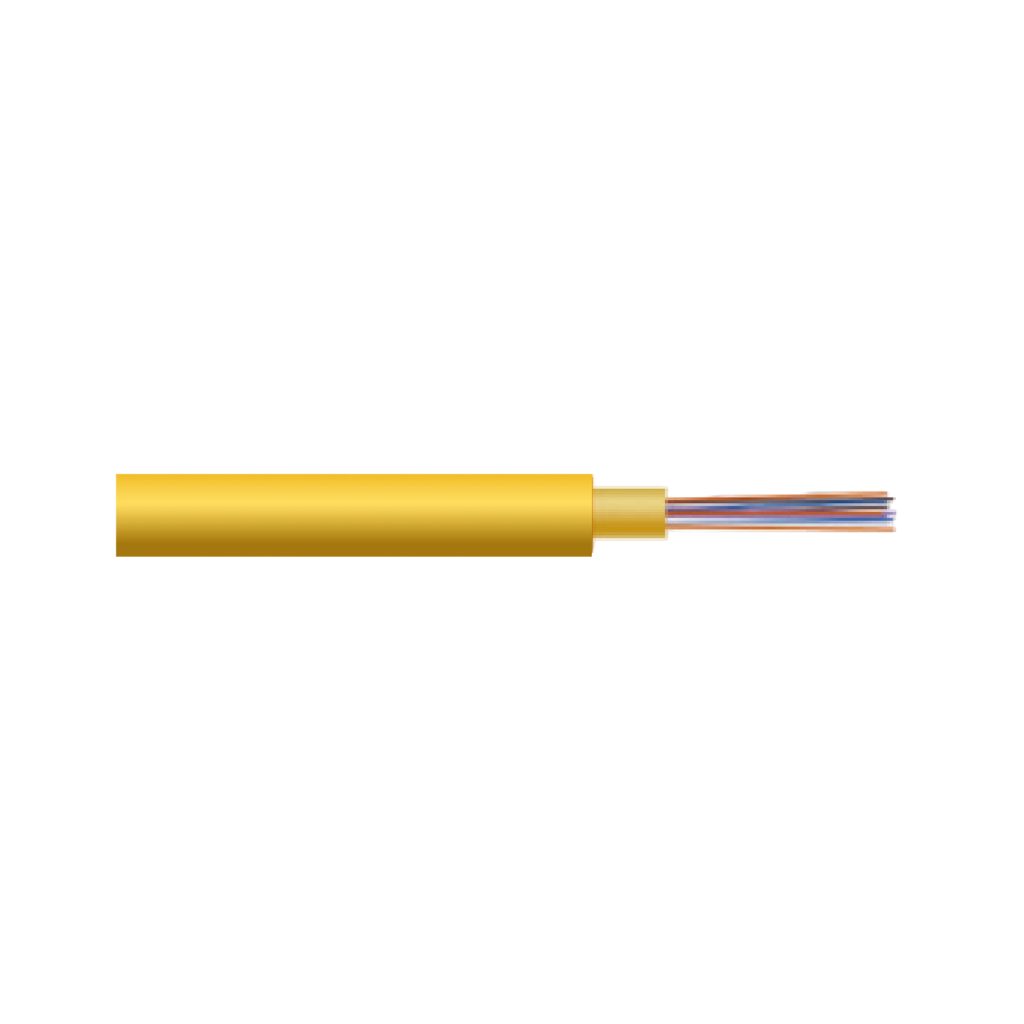

Multi-Core Cabling Cable is constructed with multiple φ900μm flame-retardant tight-buffered fibers as the optical transmission medium. A layer of aramid yarn serves as the strength member, and the outermost layer is an extruded jacket of PVC (Polyvinyl Chloride) or LSZH (Low Smoke Zero Halogen).

Specification

GJPFJH/V-4F GJPFJH/V-6F GJPFJH/V-8F GJPFJH/V-12F GJPFJH/V-16F GJPFJH/V-24F

Features

Tight-buffered fiber design enables easy stripping during installation

Tight-buffered fiber delivers reliable flame retardancy

Aramid reinforcement provides excellent tensile performance

Outer jacket features corrosion resistance, waterproofing, UV resistance, flame retardancy and eco-friendliness

Suitable for indoor structured cabling, building backbone cabling, and multi-core fiber patch cords

Specifications

Fiber Count	Outer Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N) IEC 60794-1-21-E1		Crush Resistance (N/100MM) IEC 60794-1-21-E3		Min. Bend Radius (mm)
Fiber Count	Outer Diameter (mm)	Nominal Weight (kg/km)	Long-term	Short-term	Long-term	Short-term	Dynamic	Static
4F	5.0	19.0	130	440	200	1000	20D	10D
6F	5.2	23.0	130	440	200	1000	20D	10D
8F	5.5	26.0	130	440	200	1000	20D	10D
12F	6.5	36.5	130	440	200	1000	20D	10D
16F	7.5	44.5	200	660	200	1000	20D	10D
24F	8.2	54.5	200	660	200	1000	20D	10D
Operating Temperature Range (℃): -20~+60

Product continuous optimization statement: our company reserves the right to improve product design, specifications and functions at any time without prior notice. Please refer to the actually delivered products or the latest official release for reference.
