GYTA53

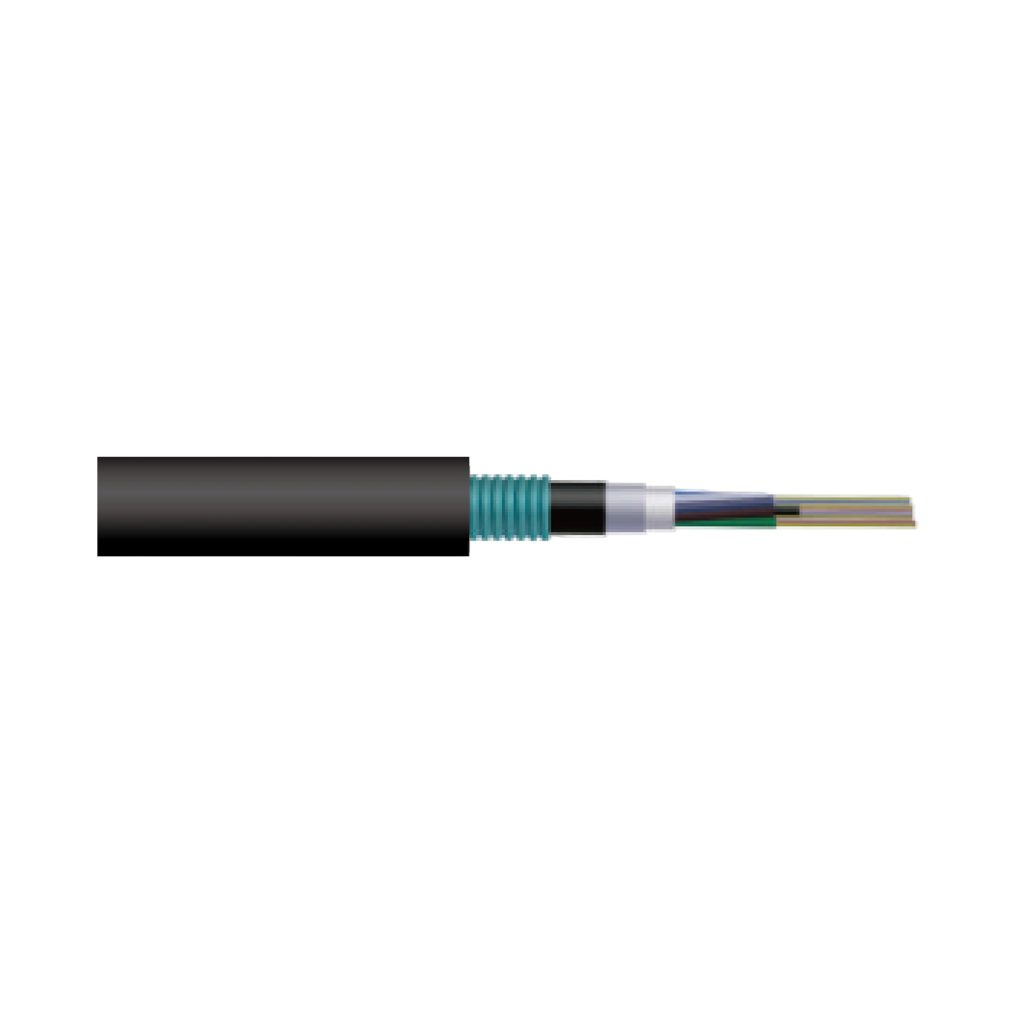

The GYTA53 Cable structure consists of optical fibers inserted into loose tubes made of high-modulus material. The loose tubes are filled with a waterproof compound. At the center of the cable core is a metal reinforcing core. For certain core counts, a layer of polyethylene (PE) is extruded over the metal reinforcing core. The loose tubes (and filler ropes) are twisted around the central reinforcing core to form a compact and round cable core. The gaps within the cable core are filled with a water-blocking filler. After longitudinal wrapping with plastic-coated aluminum tape, a layer of polyethylene inner sheath is extruded. After longitudinal wrapping with double-sided plastic-coated steel tape, a polyethylene outer sheath is extruded to form the cable.
Specification
The optical cable possesses excellent mechanical properties and temperature characteristics.
The tube is filled with a special grease, providing crucial protection for the optical fibers.
The loose tube material itself has good hydrolysis resistance and high strength.
A specially designed tight cable structure effectively prevents tube shrinkage.
Excellent water-blocking material prevents longitudinal water seepage into the cable.
Good compressive strength and flexibility; the PE sheath has excellent UV radiation resistance.
Suitable for overhead duct and direct burial installations, long-distance communication, and especially suitable for environments with high requirements for mechanical strength and rodent control.
| Fiber Count | Outer Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) IEC 60794-1-21-E1 |
Crush Resistance (N/100MM) IEC 60794-1-21-E3 |
Min. Bend Radius (mm) |
|||
| Long-term | Short-term | Long-term | Short-term | Dynamic | Static | |||
| 12-60F | 14.5±0.5 | 228.0 | 1000 | 3000 | 1100 | 2200 | 20D | 12.5D |
| 62-72F | 16.0±0.5 | 263.0 | 1000 | 3000 | 1100 | 2200 | 20D | 12.5D |
| 74-96F | 17.5±0.5 | 305.0 | 1000 | 3000 | 1100 | 2200 | 20D | 12.5D |
| 98-120F | 20.5±0.5 | 376.0 | 1000 | 3000 | 1100 | 2200 | 20D | 12.5D |
| 122-144F | 22.0±0.5 | 423.0 | 1000 | 3000 | 1100 | 2200 | 20D | 12.5D |
| Operating Temperature Range (℃): -40~+70 | ||||||||
